Topcon ES602G Total Station reflectorless Distance 500m

Name: Topcon ES602G Total Station reflectorless Distance 500m
Brand: Topcon
Price: 1 USD

Wholesale Topcon ES602G Total Station reflectorless Distance 500m from china suppliers

Brand Name : Topcon

Model Number : ES602G

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10000 per year

Delivery Time : 1-2 weeks after the goods are paid

Packaging Details : With Standard Export Shipping Way

None Prism Distance : 500m

Accuracy : 2"

Contact Now

Topcon ES602G Total Station reflectorless Distance 500m

Topcon ES602G Total Station reflectorless Distance 500m

The high-value,low-cost surveying instrument designed specifically for construction and forensics.

ECONOMICAL,VALUE-PRICED MEASURING SOLUTION
RUGGED,DURABLE,WATER RESISTANT DESIGN
TWO ACCURACIES TO CHOOSE FROM:2"&5"
EXPANDED,FULL NUMERIC KEYPAD
ON-BOARD PROGRAMS&24,000 POINT DATA STORAGE
IDEAL AS A CONSTRUCTION STAKEOUT TOTAL STATION
PERFECT WHEN COMBINED WITH FC FIELD CONTROLLER AND SOFTWARE

TELESCOPE
Length	171mm
Objective Lens	Dia. 45mm (EDM48mm)
Magnification	30x
Field of View	1°30′
Resolving Power	3.0"
Minimum Focus	1.3m
DISTANCE MEASUREMENT
reflectorless	500m
Sheet	RS10N-K :100m ,RS50N-K :300m ,RS90N-K :500m
Mini Prism	500m
1 Prism	4000m
3 Prism	5000m
Accuracy--Reflectorless	±(3mm+2ppm×D)m.s.e
Accuracy--sheet	±(3mm+2ppm×D)m.s.e
Accuracy--prism	±(2mm+2ppm×D)m.s.e
measuring time	Fine mode:0.9S;Rapid mode :0.7s , Tracking mode:0.3s
ANGLE MEASUREMENT
Accuracy	2"
Method	Absolute Reading
Reading Method (H)	Dual
Reading Method (V)	Dual
Minimum Reading	5"/1"
Tilt Correction	Double Axis, ±6'
Interface and Data management
Display/Keyboard	Graphic LCD,192*80dots ,backlight,contrast adjustment,Alphanumeric keyboard/25keys with backlight
control paner location	On both faces
Trigger Key	On right instrument support
Data storage	Internal memory:Approx.10000 points ; Plug-in memory device: USB flash memory(max.8GB)
Interface	Serial RS-232C,USB2.0(type A,for USB flash memory)
Bluetooth modem(option)	Bluetooth class I ,Ver.2.1+EDR,Operating range: up to 300m
General
Laser-pointer	Coaxial red laser using EDM beam
Guide light	Green LED (524nm) and Red LED (626nm), Operating range: 1.3 to 150m (4.3 to 490ft.)
Levels	Graphic:6'(inner circle) ; Circular level:10'/2mm
Optical plummet	Magnification: 3x, Minimum focus: 0.3m (11.8in.) from tribrach bottom
Dust and water protection	IP66 (IEC 60529:2001)
Operating temperature	-20 to +60°C (-4 to +140°F)
Size with handle	191mm181mm348mm
Weight with battery & tribrach	5.6kg
Power supply
Battery	BT-L2,Li-ion rechargeable battery
operature time	Approx.25hours(single distance measurement every 30)

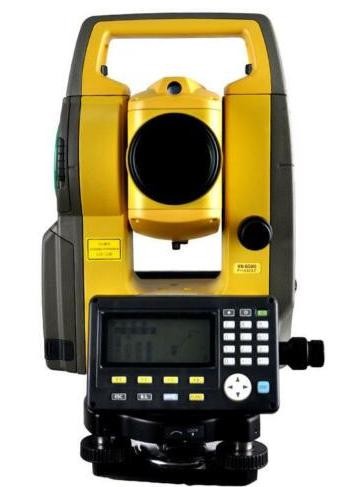

Topcon ES602G Total Station reflectorless Distance 500m Images
